CEMVIEW - Cementing Engineering Toolbox Logo Small CEMVIEW - Cementing Engineering Toolbox

  • Overview
  • Features
  • Resources
  • Specification

Cementing operation success or failure can potentially make or break the financial viability of a well or project. It is vital to correctly perform calculations and prevent mistakes during the design stage of a cementing job. As new technology evolves, the calculations of various parameters for cementing operations have become more challenging.

PVI and a United States operator have jointly developed CEMVIEW, a comprehensive cementing engineering toolbox. CEMVIEW allows the user to quickly and accurately calculate the volumes, materials, and costs through visual or animated schematics with cementing positions.

CEMVIEW aims to standardize cementing engineering computations. Having a standardized software application provides consistency and confidence in results and helps reduce unnecessary errors that could jeopardize cementing operations.

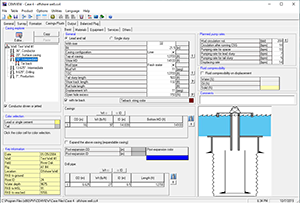

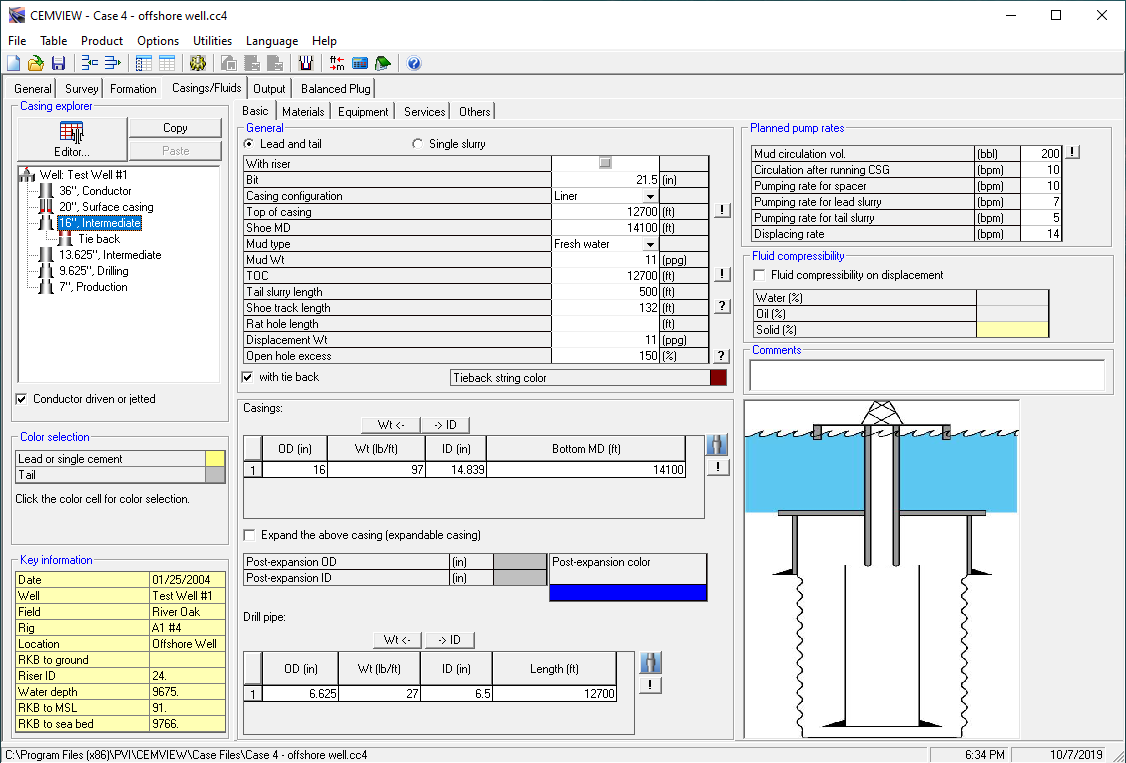

  • Casing, liner and inner string
  • Expandable casing and tie back
  • Balanced plug cement

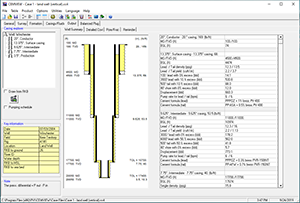

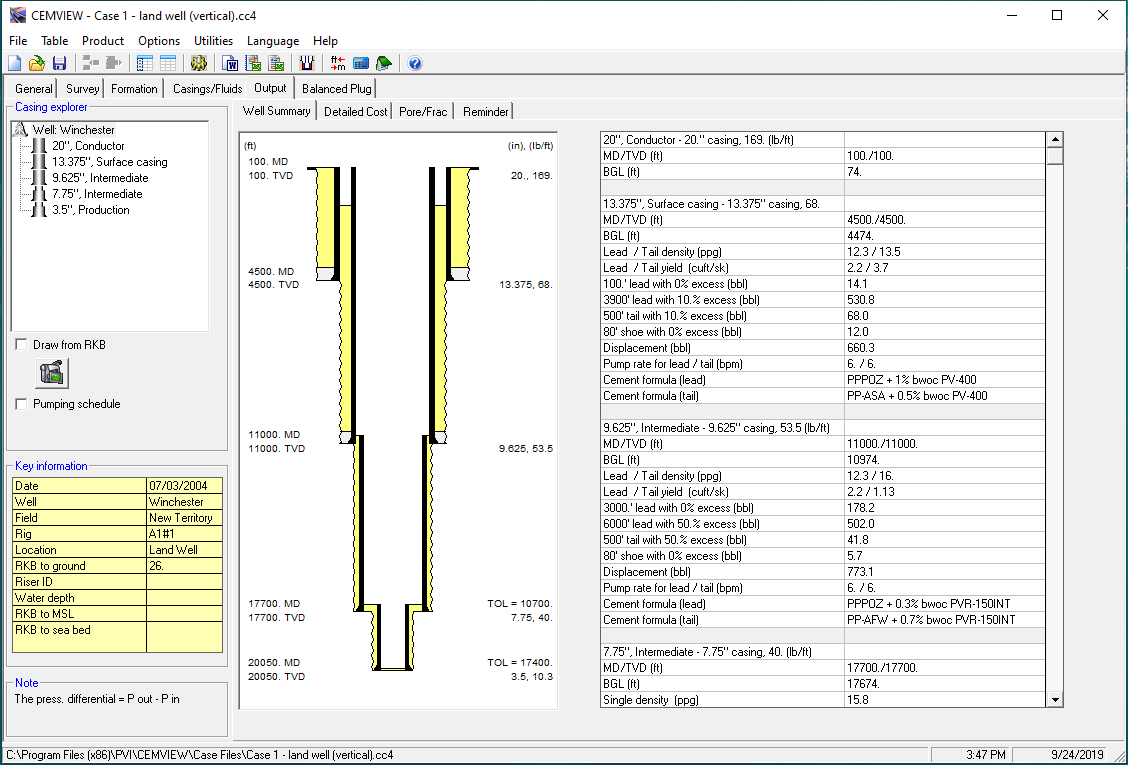

  • Wellbore and casing schematics
  • Volume and cost
  • Pumping schedule
  • Pipe database
  • Slurry formula
  • 3D well path visualization

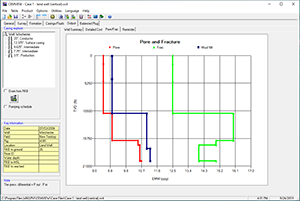

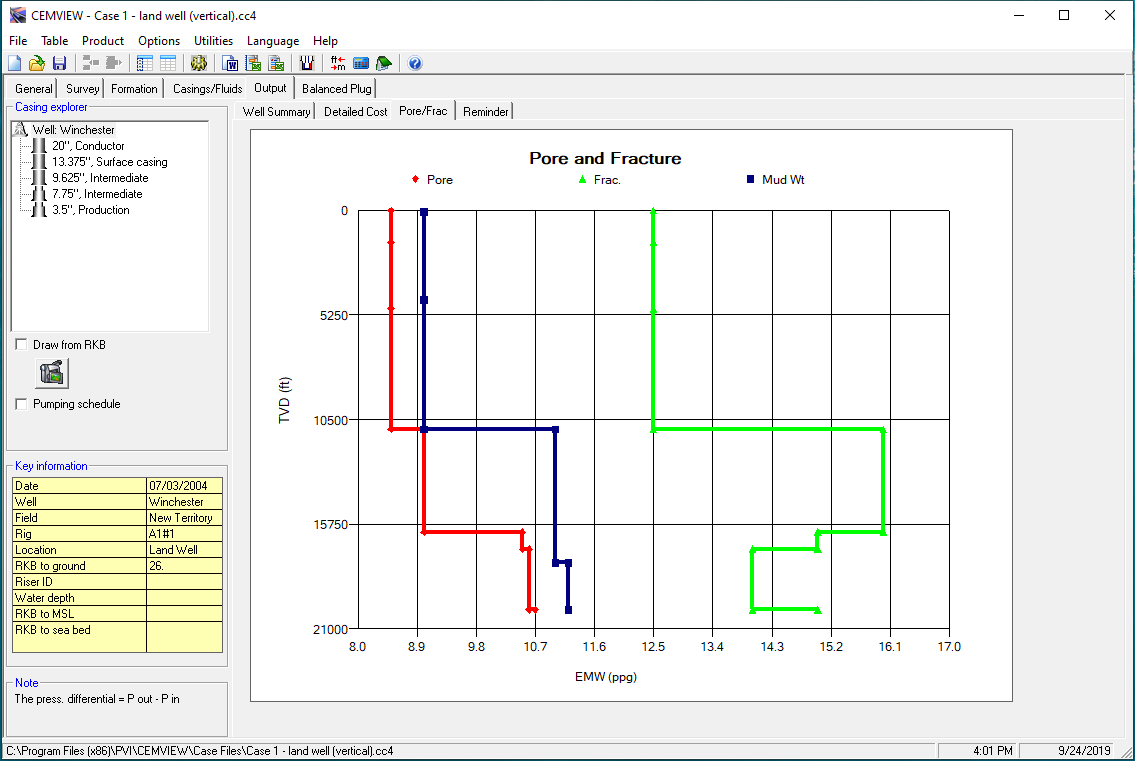

  • Pore and frac gradient
  • Sensitivity analysis on hole excess and TOC

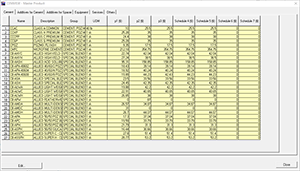

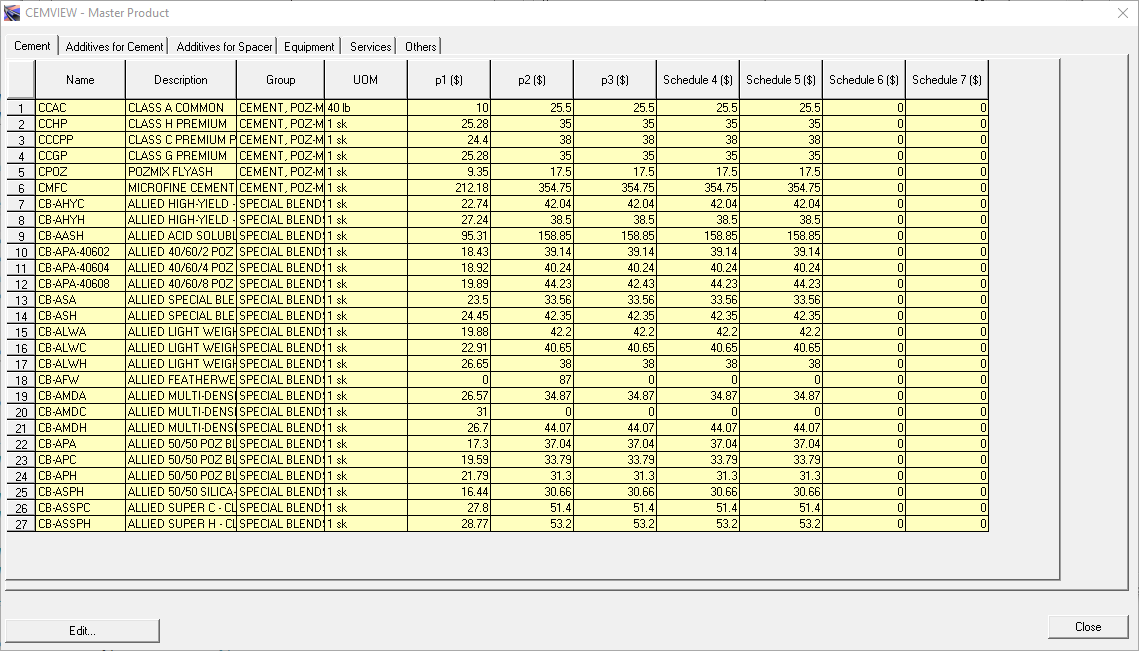

  • Master product management
  • Microsoft Excel® proposal report and E-Ticket report
  • Multi-language: English, Spanish, Chinese, and Russian
  • Screenshots
  • Brochures
  • White Paper
  • Version Highlights

    Version 4

  • Master product management (save, update, and retrieve)
  • Discount options for services, equipment and materials
  • Costs for equipment, services, and other items
  • Current product import and export
  • Microsoft Excel® proposal report and E-Ticket report
  • Multi-language: English, Chinese, Spanish and Russian

    Version 3

  • Casing, liner and inner string
  • Expandable casing and tie back
  • Balanced plug cement
  • Wellbore and casing schematics
  • Volume and cost
  • Pumping schedule
  • Pipe database
  • Slurry formulation
  • 3D well path visualization
  • Pore and frac gradient
  • Sensitivity analysis on hole excess and TOC
  • Multi-language: English and Chinese
  • Microsoft Word® report
  • Operating Systems

    • Microsoft Windows® XP, Windows® Vista, Windows® 7, Windows® 8/8.1, Windows® 10
  • Microsoft Office®

    • 2007 or later
  • Processor

    • Dual core processor, 1 GHz or faster
  • Memory

    • 1 GB RAM (2 GB recommended)
  • Disk Space

    • 200 MB of free disk space for installation
  • Display

    • 1,280 x 768 display resolution with true color or higher with small font
  • Installation Options

    • Setup file can be accessed from a download link or installation CD provided by PVI
