CEMLife - Cement StressCEMLife - Cement Stress Model

  • Overview
  • Features
  • Resources
  • Specification

Cement is fundamental in maintaining integrity throughout the life of the well. Even if the slurry has been properly placed, changes in downhole conditions can induce thermal and mechanical cycling stresses to harm the integrity of the cement sheath. CEMLife is a software package that analyzes 3 types of failure modes (traction, compression, micro-annulus) under various temperature conditions and pressure changes. CEMLife performs calculation on the impact of 8 different parameters to quickly achieve the slurry optimization with its sensitivity analysis feature.

CEMLife - Cement Stress and Wellbore Integrity Software
  • Land and offshore wells

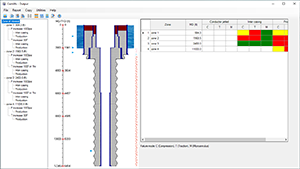

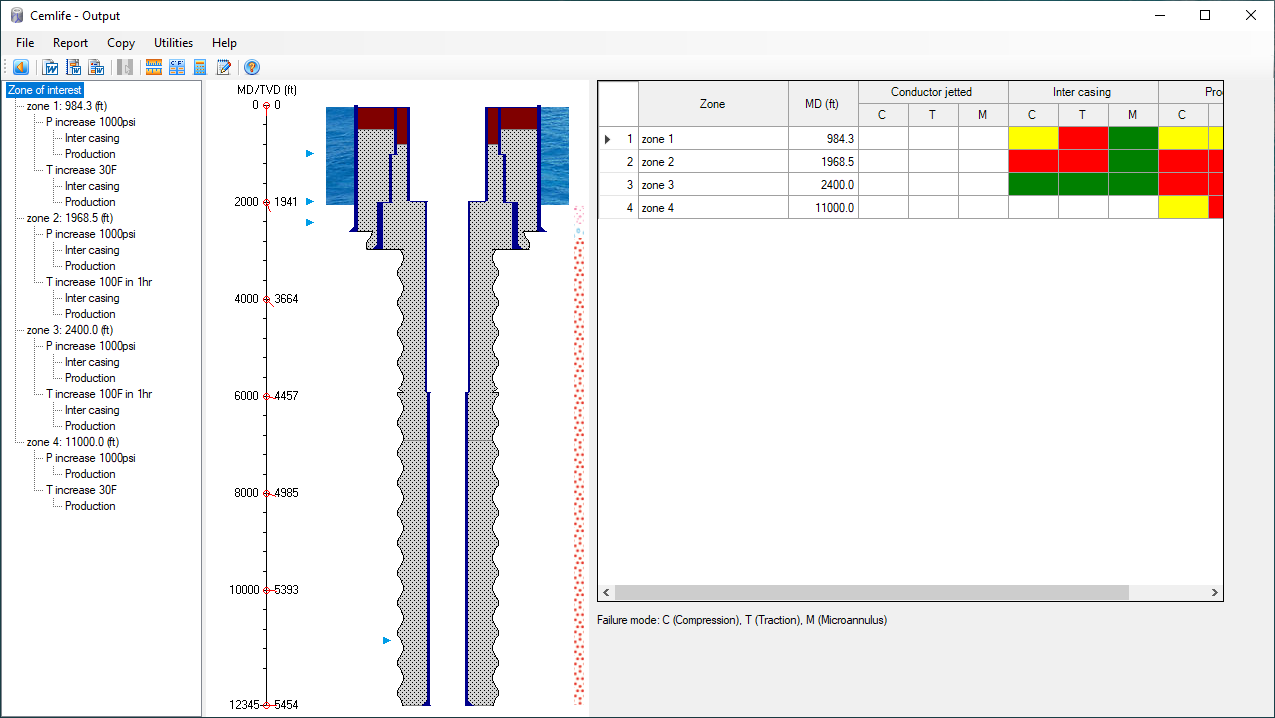

  • Whole wellbore analysis (multiple zones)
  • Multiple casing strings (up to 20 casing strings in a wellbore)
  • Different cement properties (lead/tail) in each cement column

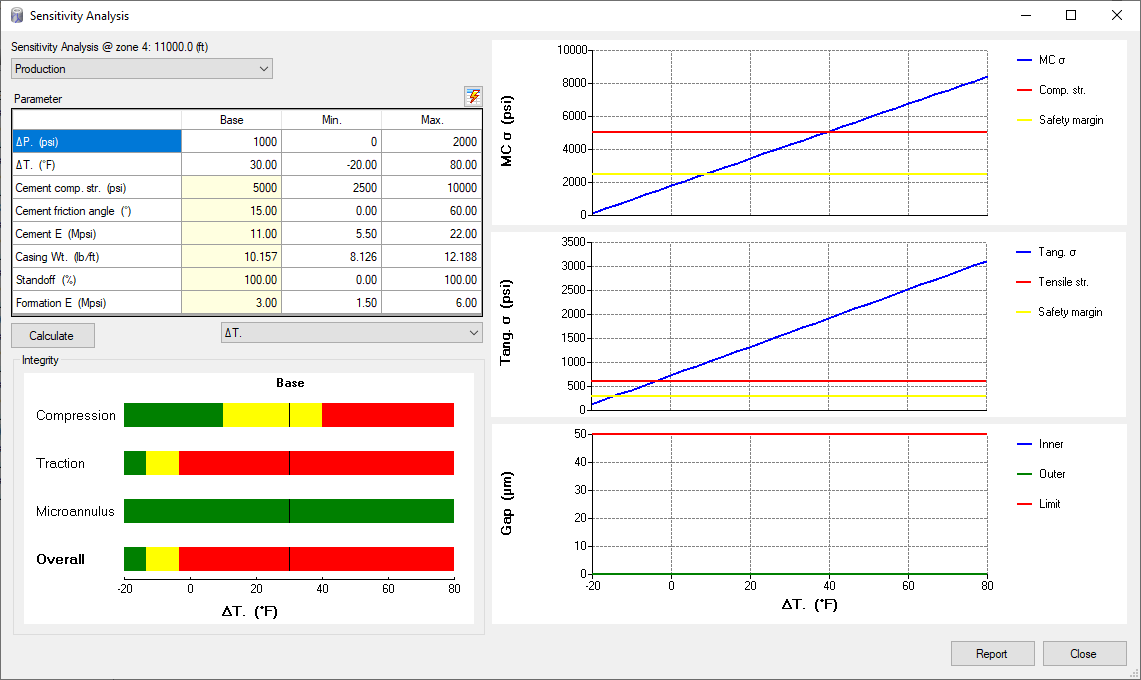

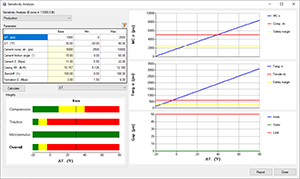

  • Sensitivity analysis
  • Load changing and failure animation
  • Professional report and animation movie generation

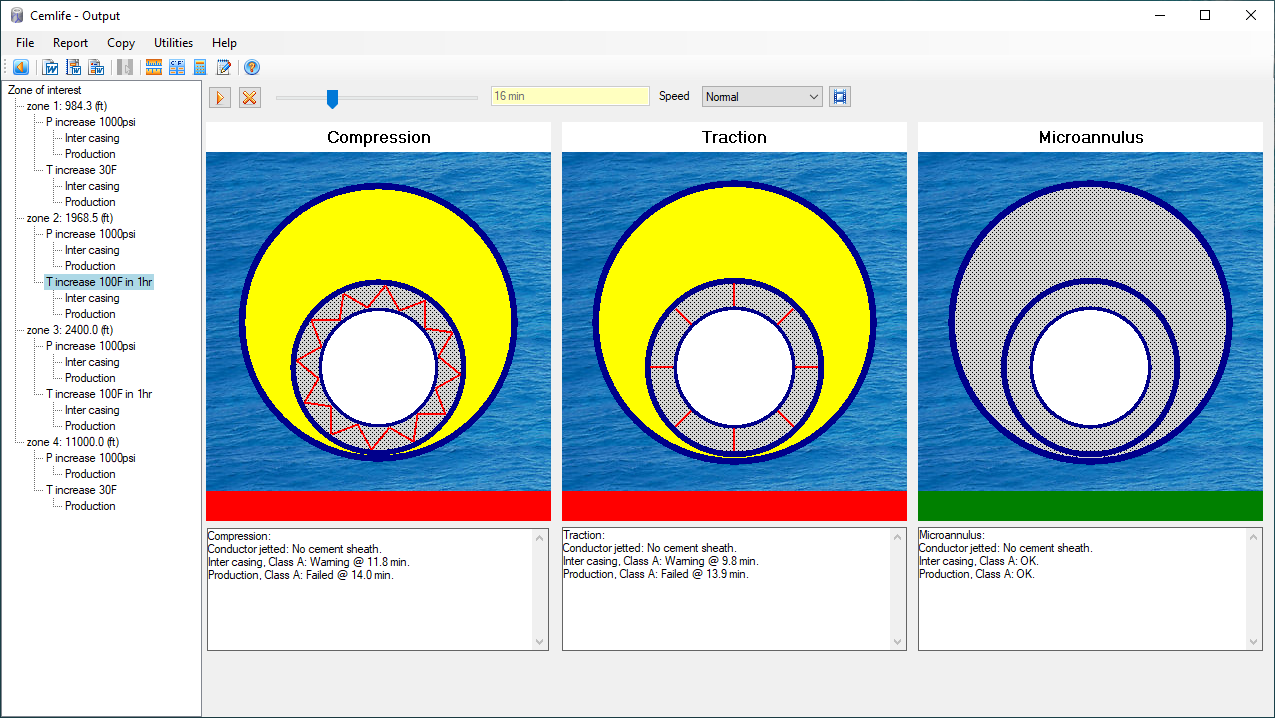

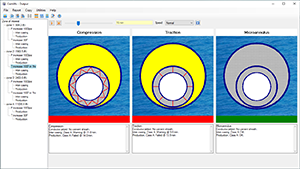

  • Predicts compression fail, traction fail, and micro annulus
  • Well trajectory 2D/3D display
  • Support complicated wellbore structure
  • Consideration of casing standoff
  • Editable casing, cement, formation databases

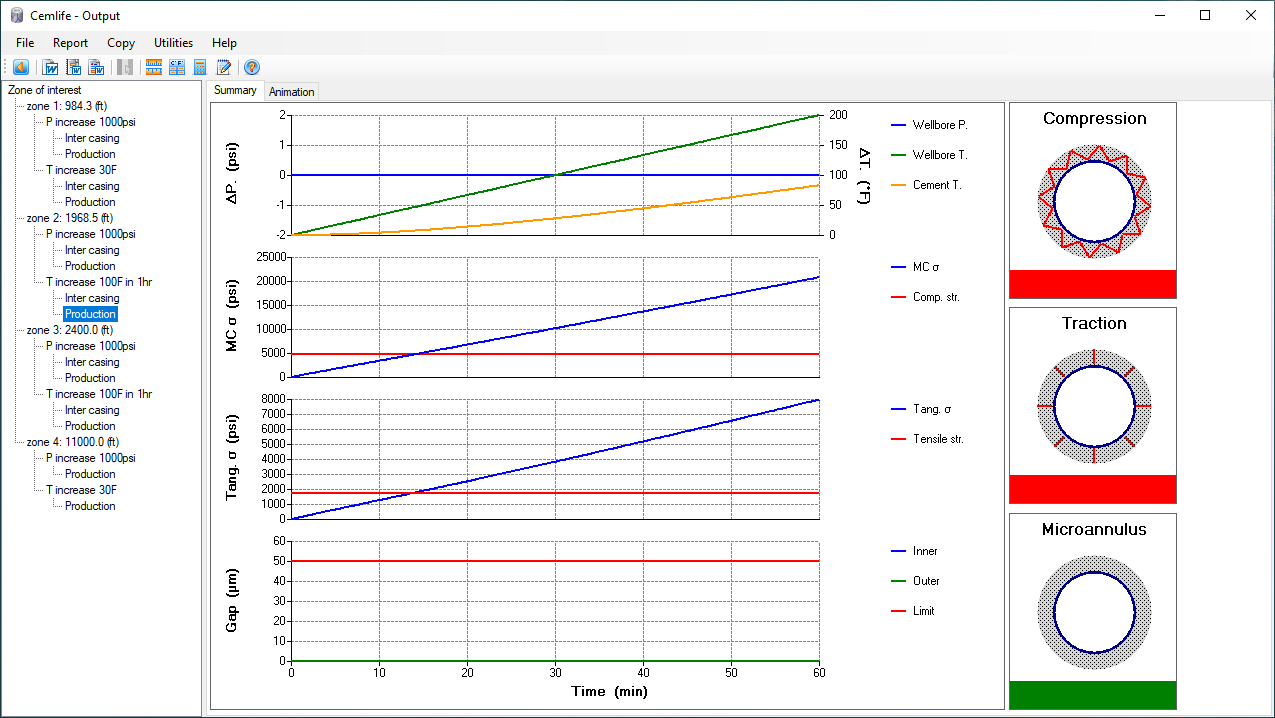

  • Up to 20 zone of interest
  • Multiple pressure and temperature schedules
  • Flexible simulation time (range from 1 minute to years)
  • Adjustable safety margin
  • Heat transition through cement, casing and mud
  • Support Jetted casing
  • Operating Systems

    • Microsoft Windows® 10 or above
  • Microsoft Office®

    • 2016 or above
  • Processor

    • Dual core processor, 1.4 GHz or higher. Not compatible with ARM processor
  • Memory

    • 4 GB RAM
  • Disk Space

    • 200 MB of free disk space for installation
  • Display

    • 1,280 x 768 display resolution
  • Installation Options

    • Setup file can be accessed from a download link or installation CD provided by PVI
